Corrosion Resistant Solenoid For Pneumatic Actuator

Corrosion Proof Solenoid for Pneumatic Actuator

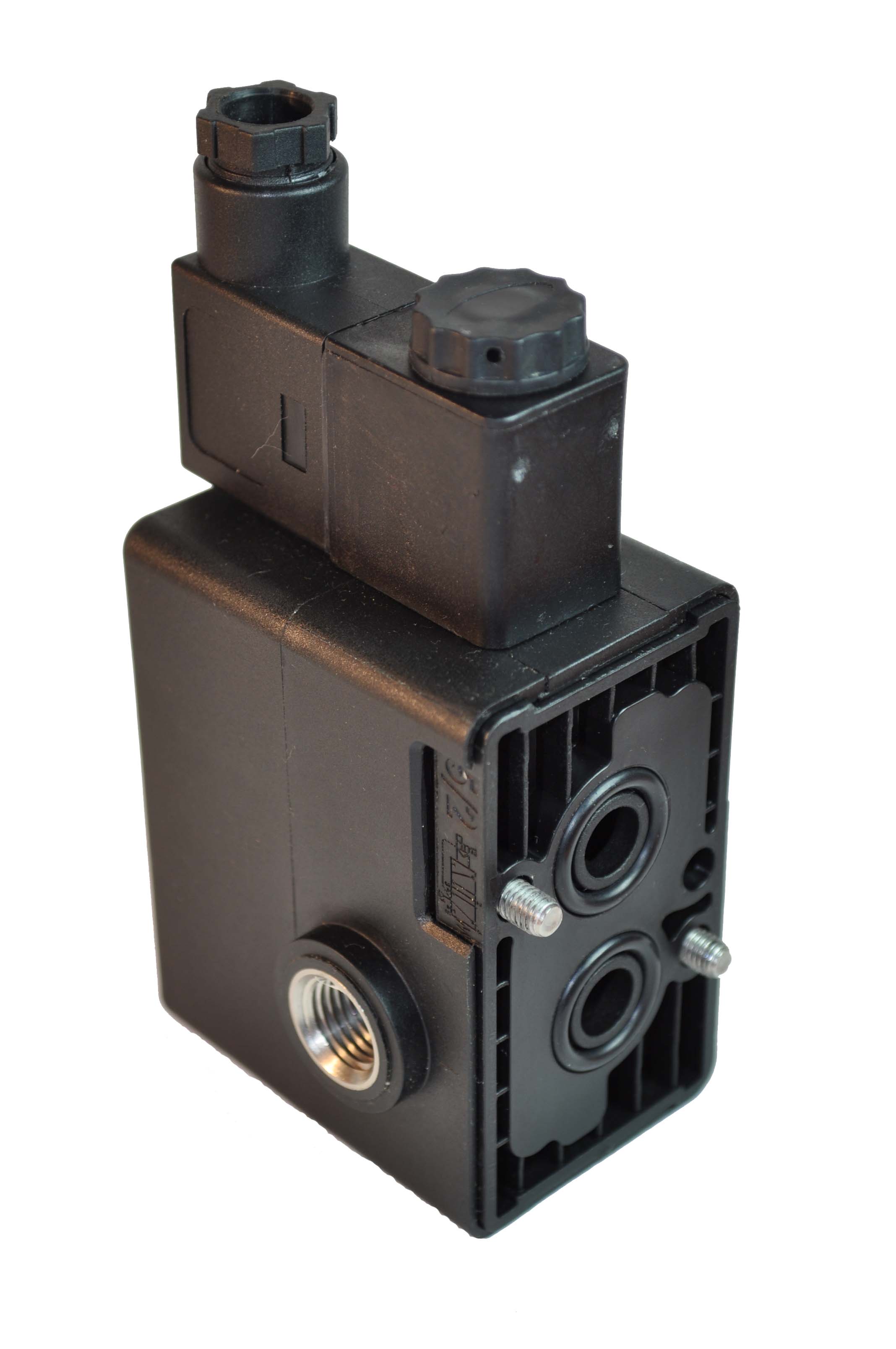

Corrosion Proof Solenoid

IDEAL FOR OUTDOOR OR AGGRESSIVE ENVIRONMENTS.

  • Body made of rugged composite material.
  • All metal parts stainless steel.

CORROSION PROTECTION FOR ACTUATOR SPRINGS AND INTERNAL SURFACES.

  • In 3/2 form, exhaust feed back ensures only clean dry instrument air enters the spring chamber.

SIMPLE INSTALLATION.

  • NAMUR mount for direct installation on the actuator.
  • Each port numbered in the moulding for easy connection.
  • Simple, reliable electrical connection by weatherproof DIN connector.

CHOICE OF ELECTRICAL OPERATING VOLTAGES.

  • 24V AC or DC, 110 or 220 VAC 50 or 60 Hz, Specify at time of order.

MANUAL OVERRIDE

corrosion proof solenoid with manual override

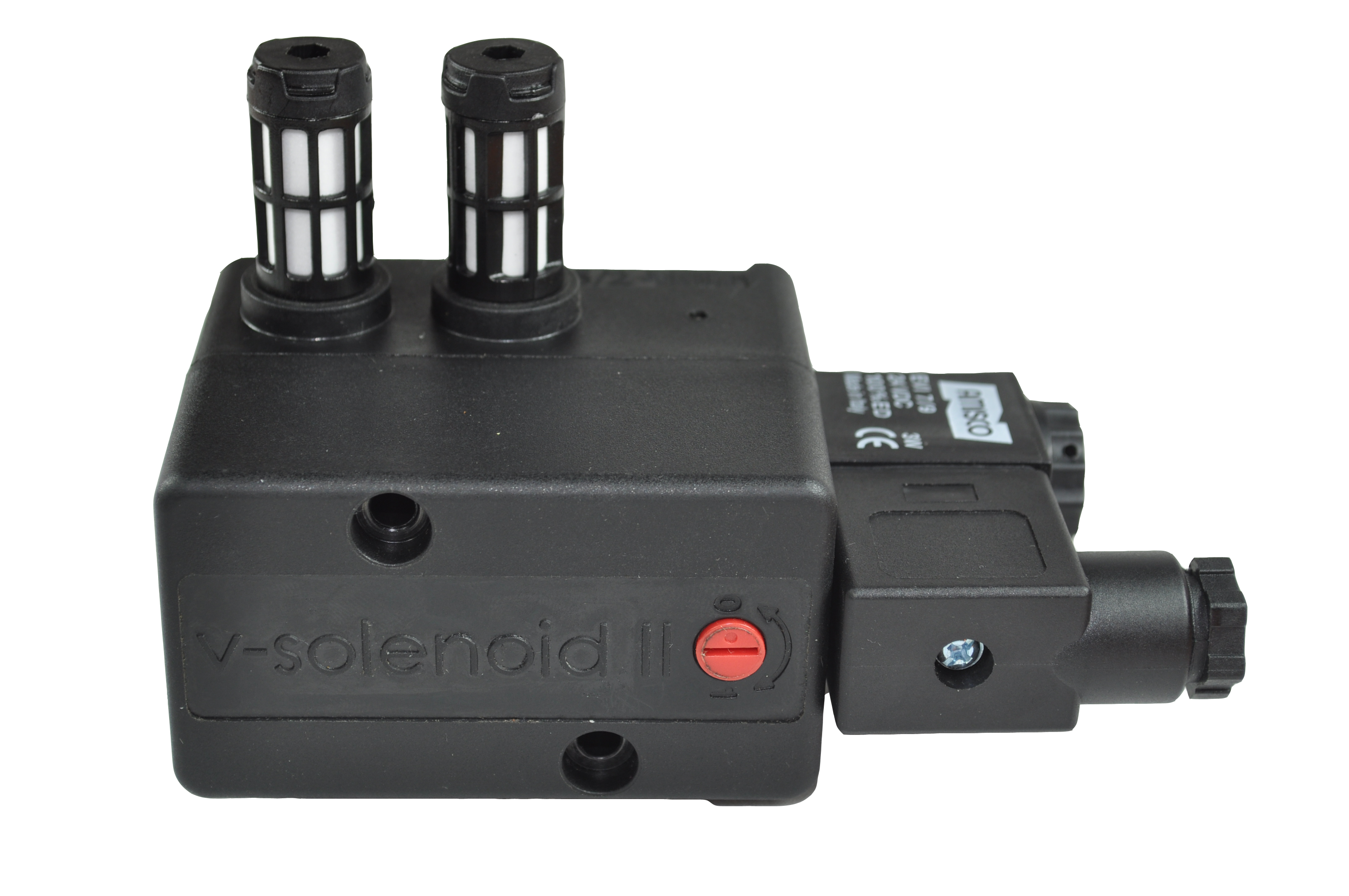

Manual Override Control
  • A red screw provides manual override for operation without an electrical signal.
  • Turn red screw to 1 and valve will be in the same position as with an energised solenoid.
  • Turn red screw counter clockwise to 0 to disengage¬† manual override.







Re purpose application

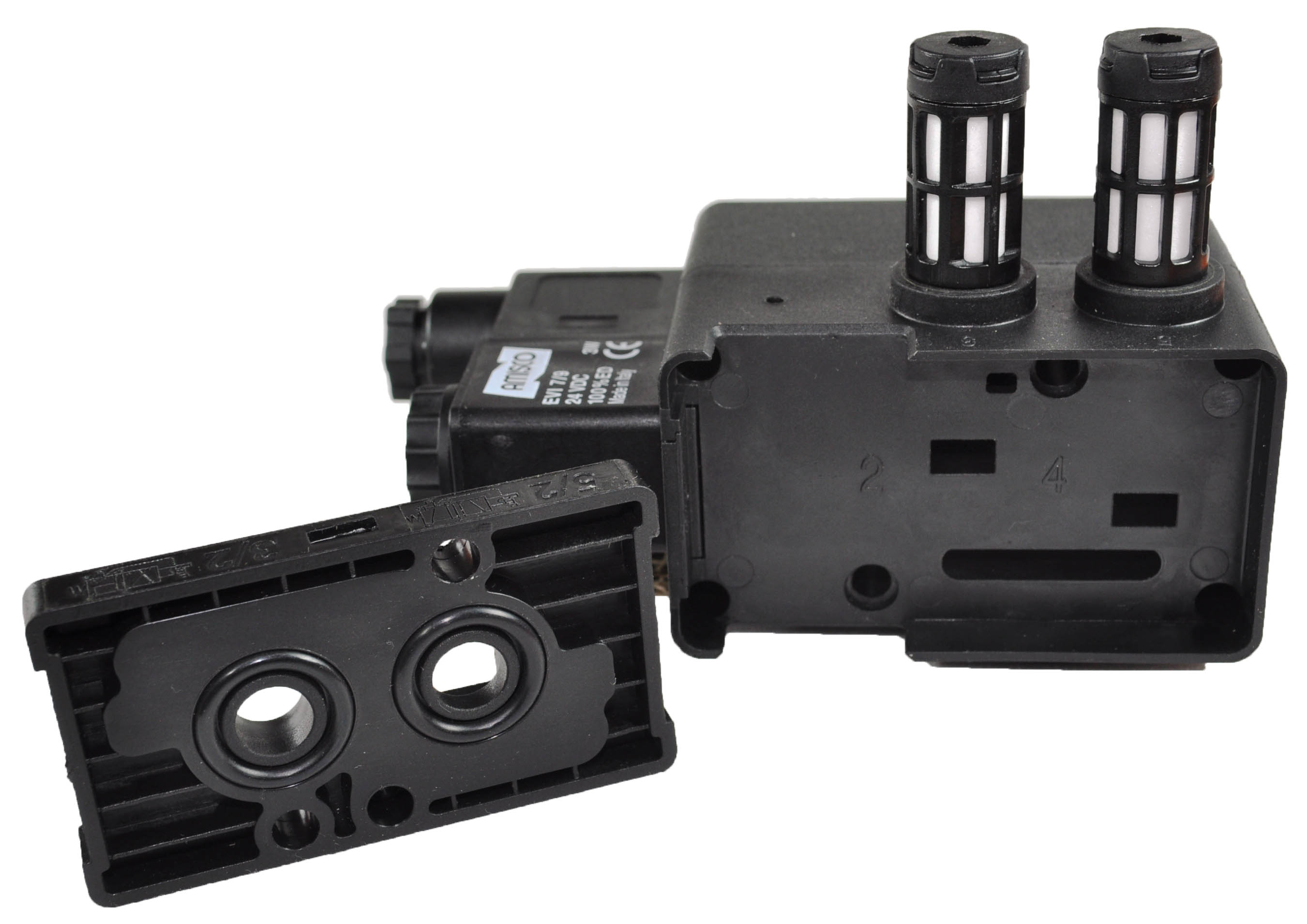

Application Selection Plate

VALVE CAN BE RE PURPOSED BY RE POSITIONING SELECTION PLATE.

APPLICATIONS.

  • Use 3/2 configuration for spring return actuators.
  • Use 5/2 configuration for double acting actuators.
