Clearance items at below cost prices. Prices valid while we are overstocked.

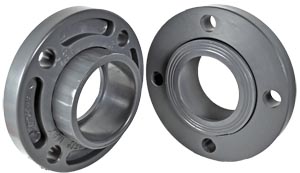

ANSI 150 Grey PVC Industrial Flanges.
- Loose ring for easy alignment, with holding pip for vertical pipe runs.
- Tapered socket for extra strong solvent cemented joints.
- Serrated, raised joint face for leak proof gasket seal.
Flanges ANSI 150 Bolt Pattern Bargain Prices
| PART NUMBER | BOLT HOLES & DIA | PCD mm | BARGAIN PRICE |
|---|---|---|---|
| 854-020 | 4 X 20mm | 120.6mm | $7 |
| 854-030 | 4 X 20mm | 152.4mm | $12 |
| 854-060 | 8 X 22mm | 241.3mm | $24 |
| 854-080 | 8 X 22mm | 298.5mm | $42 |
WE ARE DRAMATICALLY OVERSTOCKED ON THESE TOP QUALITY VALVES.
DON’T MISS THESE BELOW COST PRICES FOR EXISTING STOCK ONLY!!

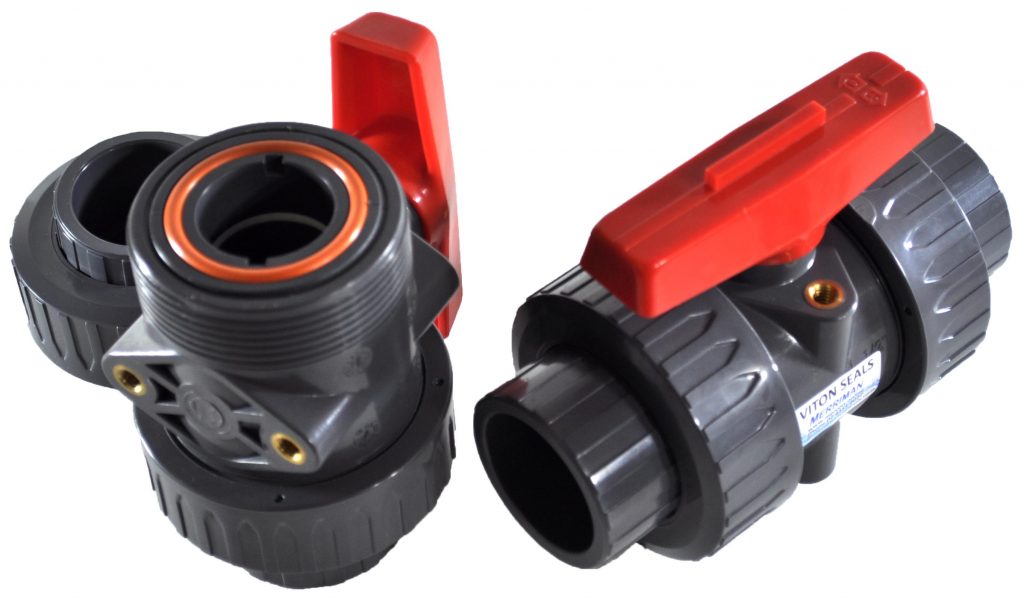

- An industrial quality PVC ball valve with 10 bar pressure rating.
- Schedule 80 tapered solvent socket ends for 80%stronger joints.
- Double union construction for simple radial removal without pipe work stress.
- Safety bloc design, retains the ball with leak proof pressure seal when down stream union end is removed.
- EPDM or FKM seals available.
- High strength square thread valve nuts for stability at high temperatures & leak proof performance.
| MERCON PVC MANUAL BALL VALVES, 10 BAR PRESSURE RATING, DOUBLE UNION SAFE BLOCK DESIGN, WITH SOLVENT SOCKET ENDS. THREADED INSERTS FOR ACTUATOR AND SURFACE MOUNT. | ||||
|---|---|---|---|---|
| EPDM Seals | VITON Seals | |||
| SIZE | PART NUMBER | PRICE | PART NUMBER | PRICE |
| 1/2" NB (DN15) | CH100721005E | SOLD OUT! | CH100721005V | $9.25 |
| 3/4" NB (DN20) | CH100721007E | $9.90 | CH100721007V | $16.50 |
| 1" NB (DN25) | CH100721010E | $16.50 | CH100721010V | $23.10 |
| 1.1/4" NB (DN32) | CH100721012E | $19.80 | CH100721012V | $29.70 |
| 1.1/2" NB (DN40) | CH100721015E | $26.40 | CH100721015V | $36.30 |
| 2" NB (DN50) | CH100721020E | $42.90 | CH100721020V | $49.50 |
| MERCON PVC MANUAL BALL VALVES, 7 BAR PRESSURE RATING, DOUBLE UNION SAFE BLOCK DESIGN, WITH SOLVENT SOCKET ENDS. THREADED INSERTS FOR ACTUATOR AND SURFACE MOUNT. | ||||
|---|---|---|---|---|
| EPDM Seals | VITON Seals | |||
| SIZE | PART NUMBER | PRICE | PART NUMBER | PRICE |
| 3" NB (DN80) | CH100721030E | $141.90 | CH100721030V | $191.40 |
| 4" NB (DN100) | CH100721040E | $221.10 | CH100721040V | $267.30 |
